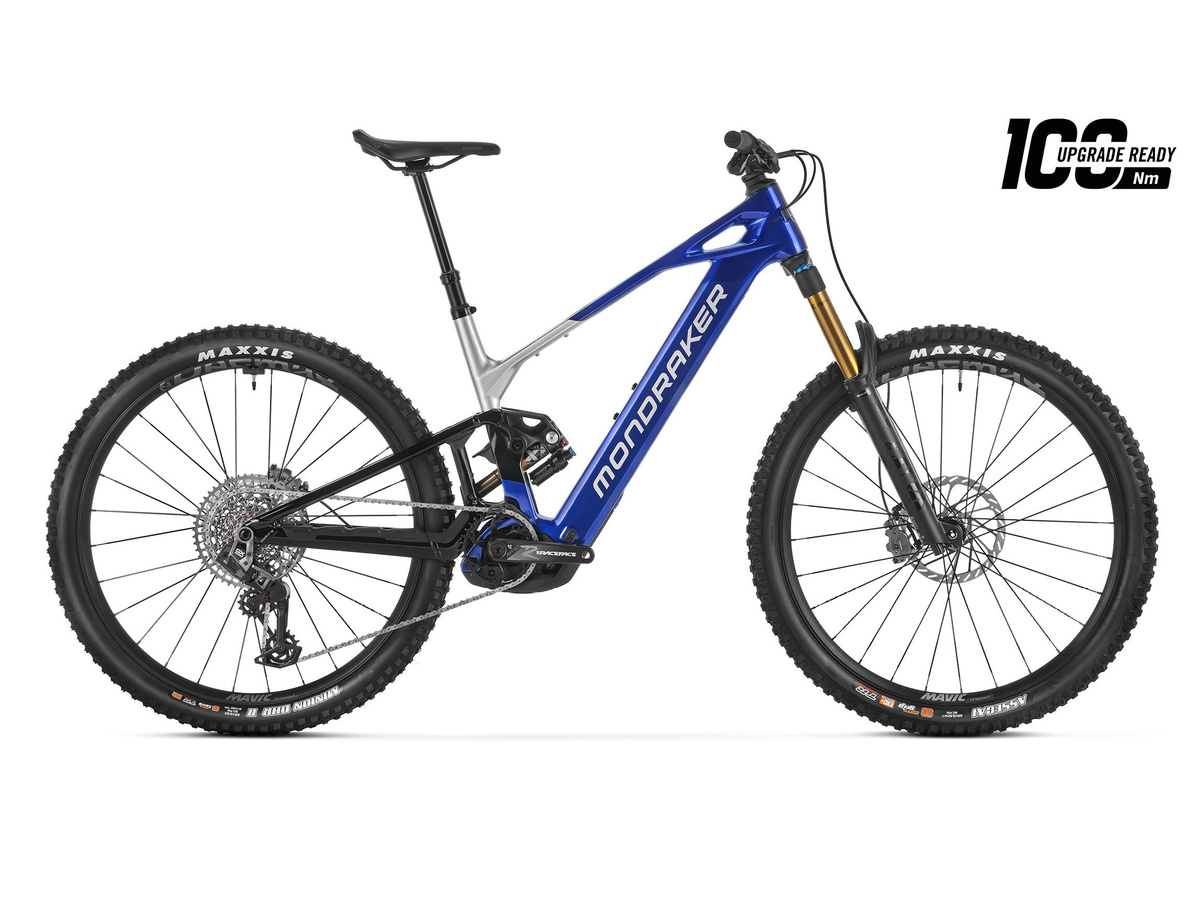

MONDRAKER Crafty Carbon RR 2026 admiral blue
SZCZEGÓŁOWE INFORMACJE
MONDRAKER Crafty Carbon RR 2026 admiral blue
- Rear shock · Fox Float X Factory Kashima EVOL
- Fork · Fox 38 29 Float GRIPX2 Factory Kashima
- Brake lever · Sram Maven Bronze
- Rear derrailleur · Sram GX Eagle AXS, T-Type, 12s

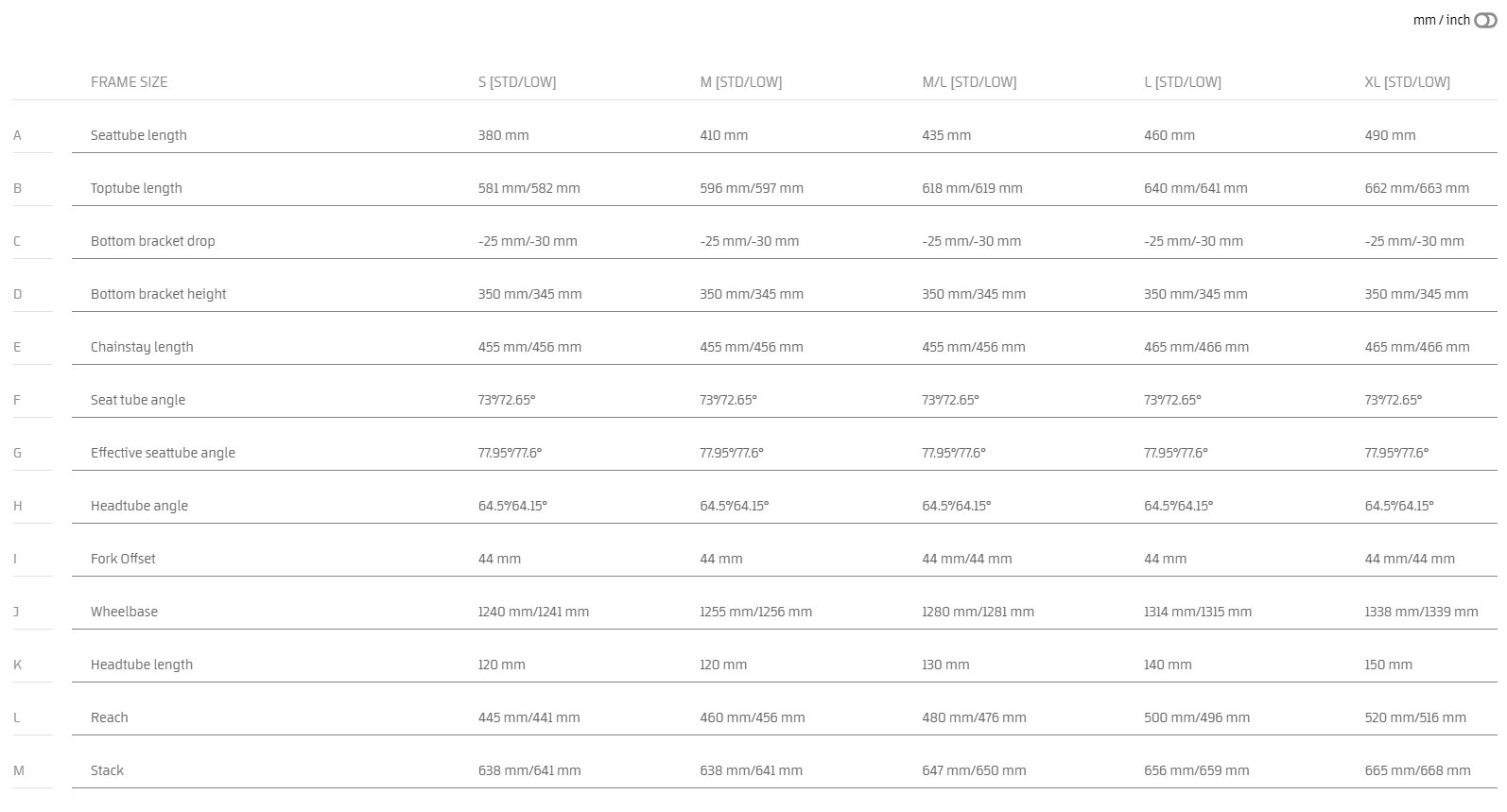

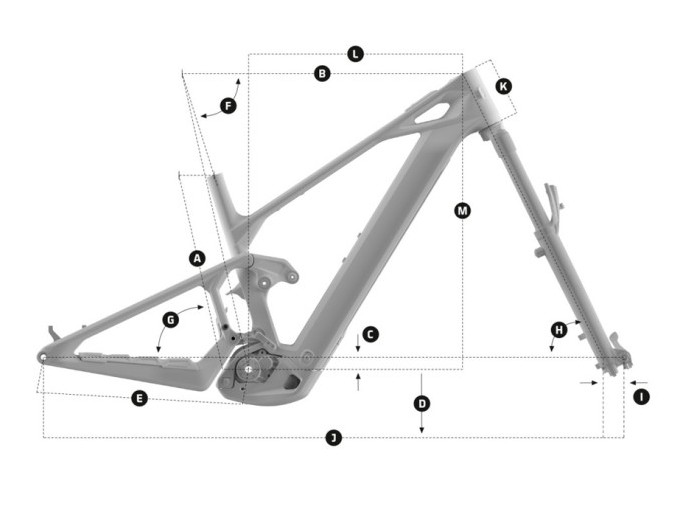

Geometria
* Ze względu na problemy łańcucha dostaw komponentów rowerowych, rowery mogą być dostarczane ze zmienionym osprzętem względem w/w specyfikacji.
Do pobrania
Marka
Symbol
010.26309
Kod producenta
M/L8435803007611
S8435803007598
M8435803007604
L8435803007628
XL8435803007635
Seria
Ogólne
Rok modelowy
2026
Nazwa modelu
MONDRAKER Crafty Carbon RR
Kategoria
FULLSUSPENSION
Rozmiar
S: 380mm / M: 410mm / M/L: 435mm / L: 460mm / XL: 490mm
Dane techniczne
Rama

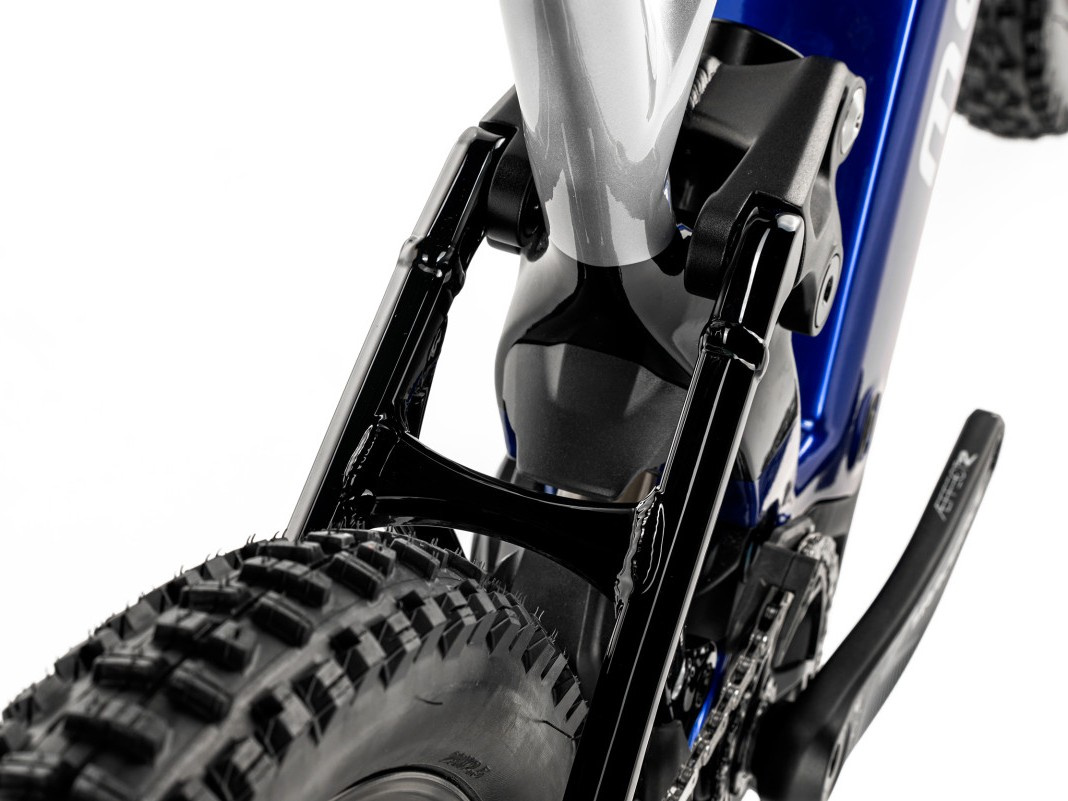

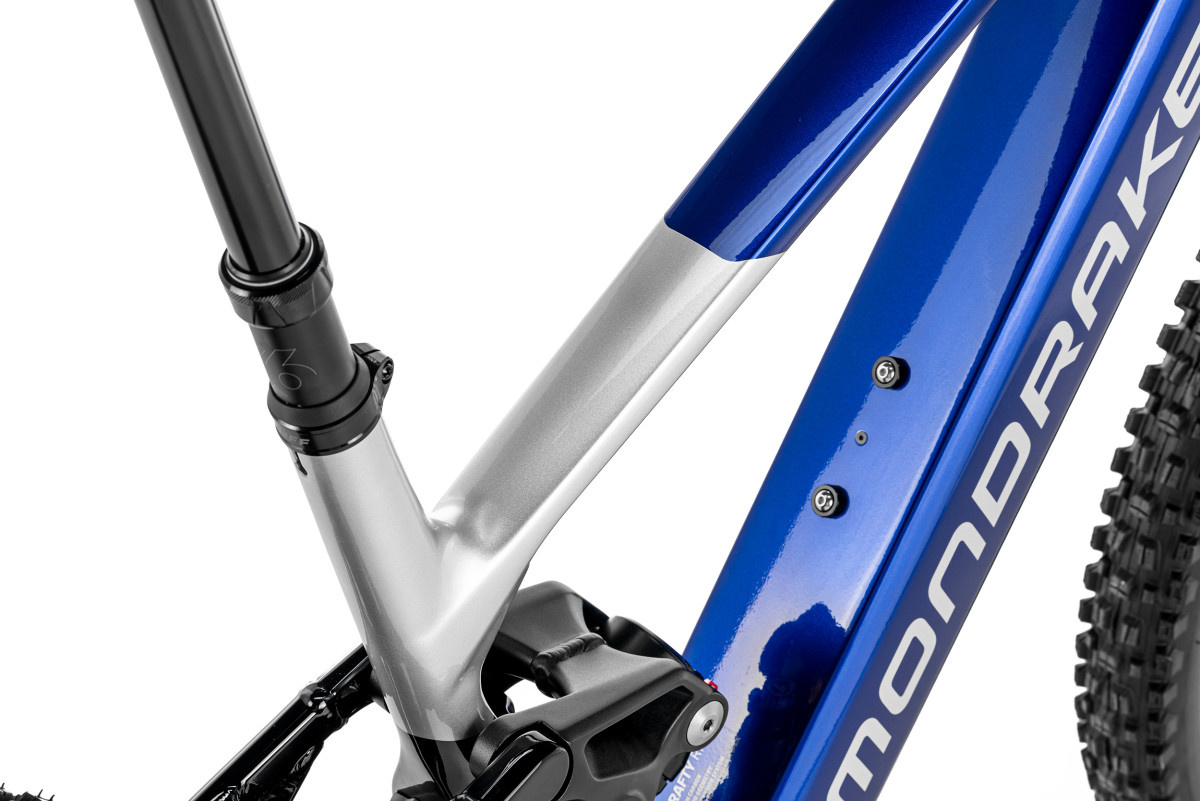

Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH,
tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Tylny amortyzator
Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Regulacja amortyzatora
CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer
Widelec
Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Łożyska sterów
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Mostek
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Kierownica
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Gripy
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Siodełko
Ergon SM-10
Sztyca
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Przedni hamulec
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Tylny hamulec
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Klamki hamulca
Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Obręcze
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Szprychy
Mavic J-bend double butted, contactless lacing
Piasta przednia
Mavic, Boost 15x110mm, IS 6 bolts
Piasta Tylna
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Opona przednia
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Opona tylna
Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Korba
Race Face Aeffect-R ebike, 160mm
Koronki
Sram Eagle 34T T-Type, direct mount, steel, CL55
Łańcuch
Sram GX Eagle T-Type, 12s, Powerlock
Przerzutka tylna
Sram GX Eagle AXS, T-Type, 12s
Manetka
Sram Eagle AXS Pod MMX, 12s
Kaseta
Sram XS-1275, 10-52T, T-Type, 12s
Wyświetlacz
Kiox 400C / Bosch Mini Remote
Silnik
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Akumulator
Bosch Powertube 800Wh
Waga
około 24,4 kg
