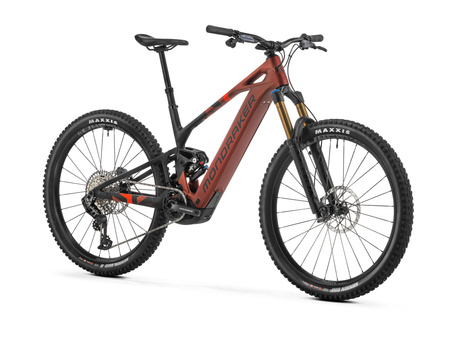

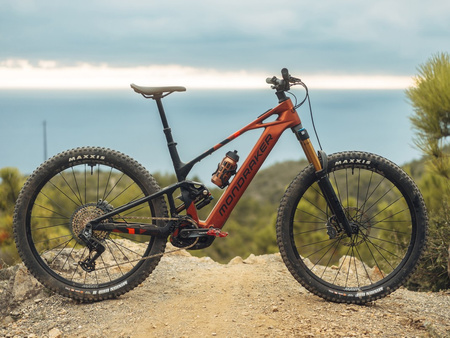

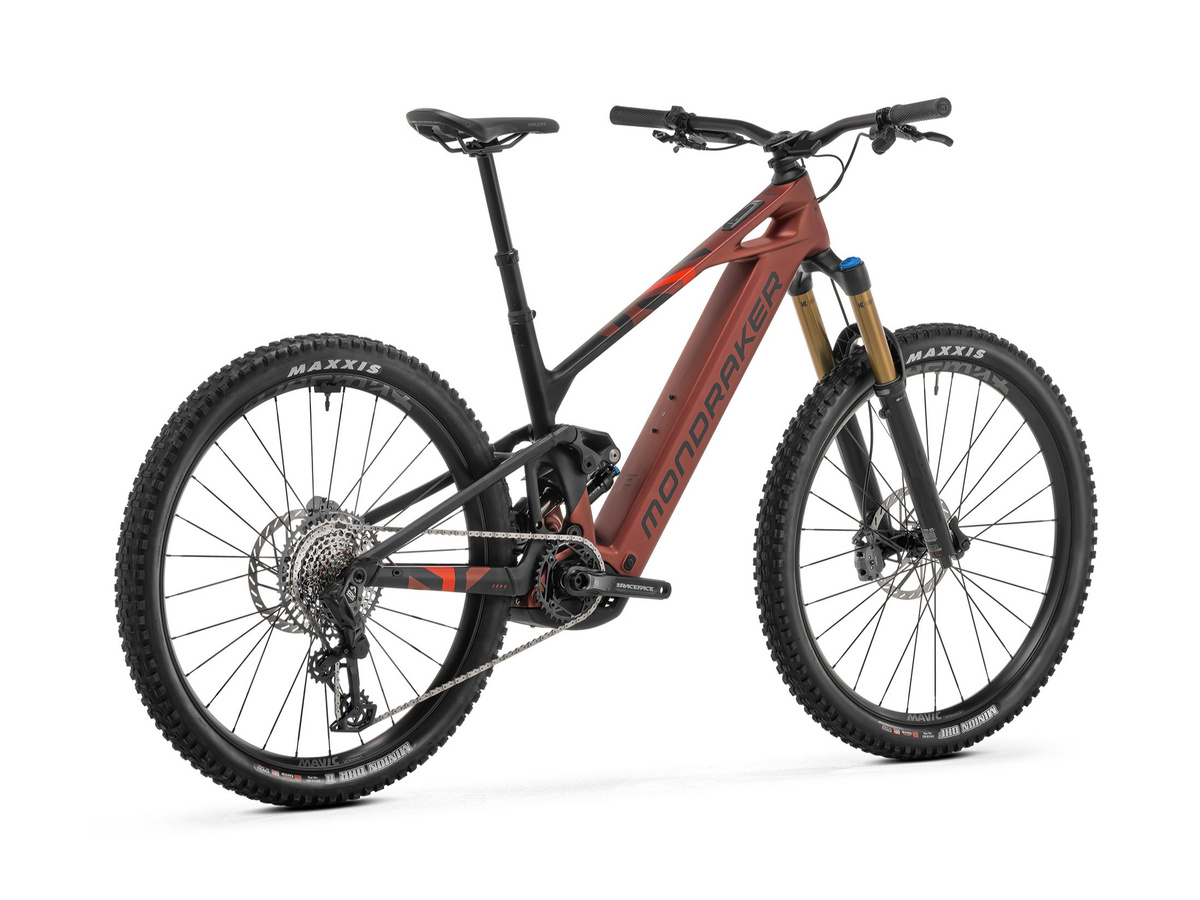

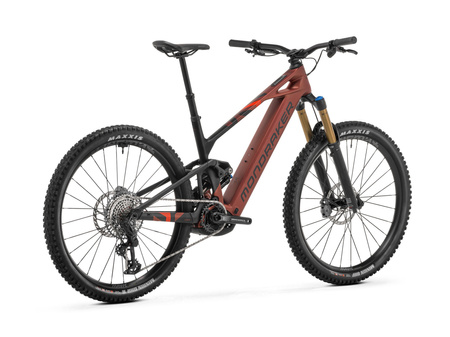

MONDRAKER Crafty Carbon RR earth red/black/flame red
SZCZEGÓŁOWE INFORMACJE
MONDRAKER Crafty Carbon RR earth red/black/flame red
Crafty Carbon RR takes things up a notch when it comes to components, being the first bike in the range to offer SRAM’s wireless GX AXS drivetrain and Fox suspension front and rear with their patented Kashima coating. It also comes with the much talked about SRAM Maven brakes and Bosch’s new 800Wh battery. The RR comes in the spectacular Earth Red / Black / Flame Red paint scheme. ONOFF components have you covered for bars, stem and the Pija dropper post in different lengths dependant on frame size.
Geometria
* Ze względu na problemy łańcucha dostaw komponentów rowerowych, rowery mogą być dostarczane ze zmienionym osprzętem względem w/w specyfikacji.
Do pobrania
Ogólne
Rok modelowy
2025
Nazwa modelu
MONDRAKER Crafty Carbon RR
Kategoria
FULLSUSPENSION
Rozmiar
S: 380mm / M: 410mm / M/L: 435mm / L: 460mm / XL: 490mm
Dane techniczne
Rama

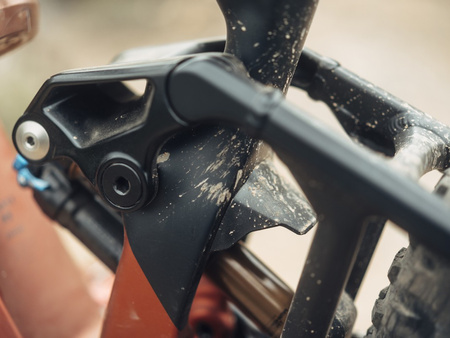

Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle,
tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Tylny amortyzator
Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Regulacja amortyzatora
CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Widelec
Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Łożyska sterów

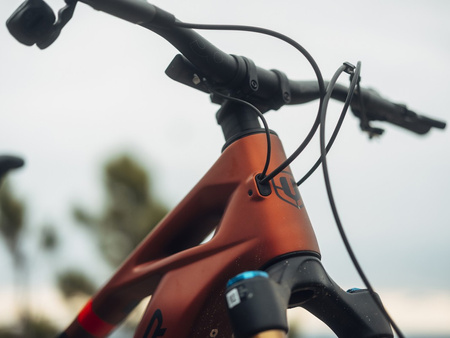

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Mostek
Onoff S6 30mm 0?, 6061 forged alloy + CNC, 31.8mm barbore
Kierownica
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8? backsweep, 5? upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Gripy
Onoff Forest, CNC lock-on, 135mm
Siodełko
Ergon SM-10
Sztyca
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Przedni hamulec
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Tylny hamulec
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Klamki hamulca
Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Obręcze
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Szprychy
Mavic J-bend double butted, contactless lacing
Piasta przednia
Mavic, Boost 15x110mm, IS 6 bolts
Piasta Tylna
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Opona przednia
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Opona tylna
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Korba
Race Face Aeffect-R ebike, 160mm
Koronki
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Łańcuch
Sram GX Eagle T-Type, 12s, Powerlock

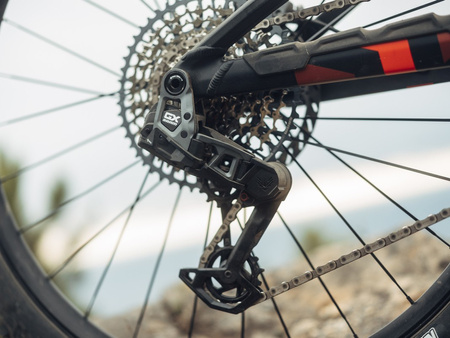

Przerzutka tylna
Sram GX Eagle AXS, T-Type, 12s
Manetka
Sram Eagle AXS Pod MMX, 12s
Kaseta
Sram XS-1275, 10-52T, T-Type, 12s
Wyświetlacz
Purion 400 / Bosch Mini Remote / Bosch System Controller
Silnik
New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)
Akumulator
Bosch Powertube 800Wh
Waga
około 24,4 kg
